پزشکان اغلب از تصویربرداری ام آر آی برای تشخیص و درمان عارضه های پزشکی که فقط با استفاده از اشعه ایکس یا میدان مغناطیسی و امواج رادیویی قابل مشاهده است، استفاده می کنند. دستگاه ام آر آی تصاویر دقیق از ساختار های داخلی بدن ایجاد می کند. در این کیس کیست وولوم کاوم اینترپوسیتوم (cavum veli interpositi cyst) و سلای نسبتا خالی مشاهده می شود.
گزارش پزشک :

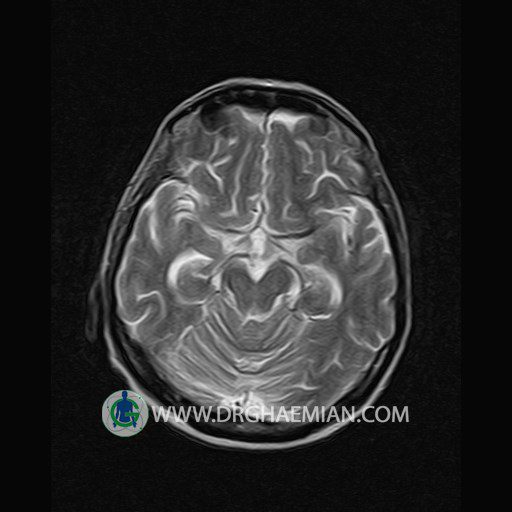

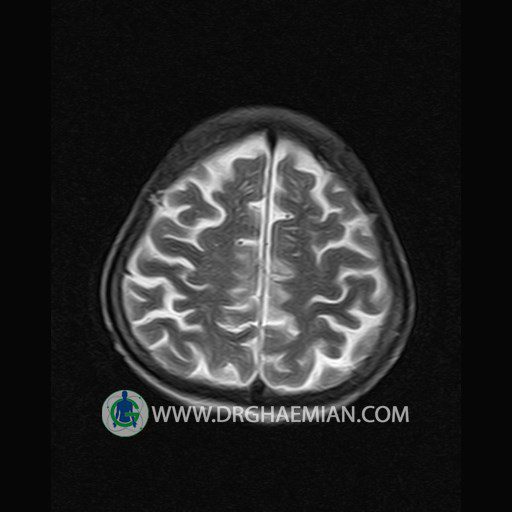

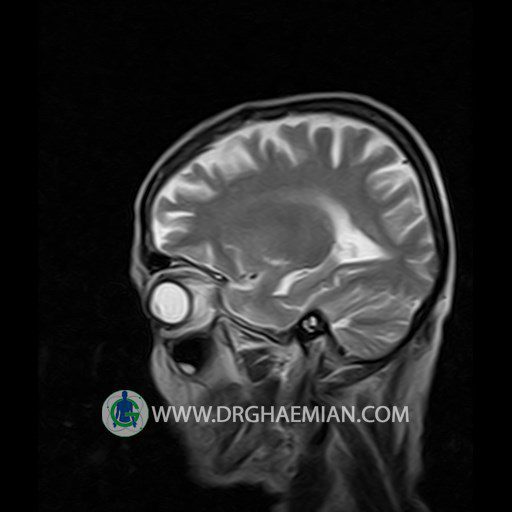

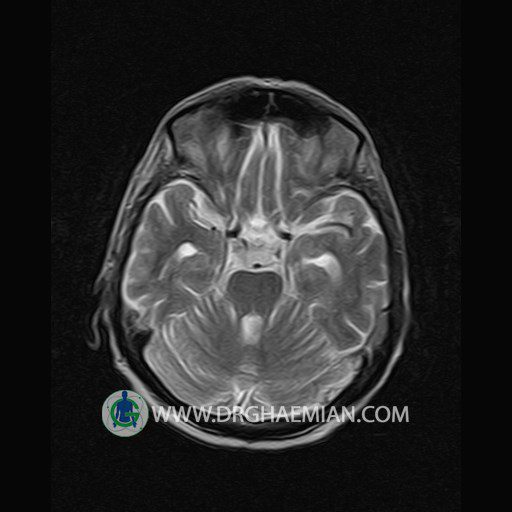

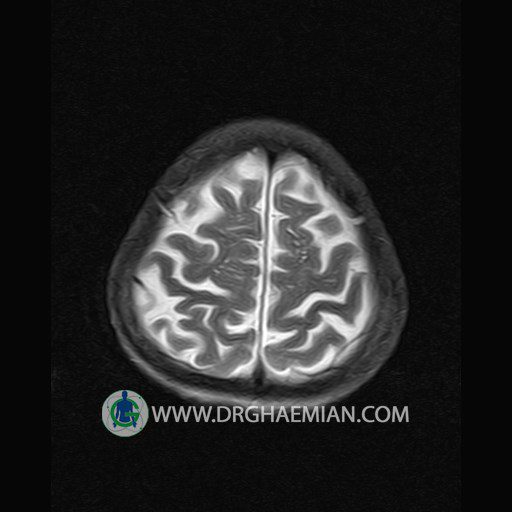

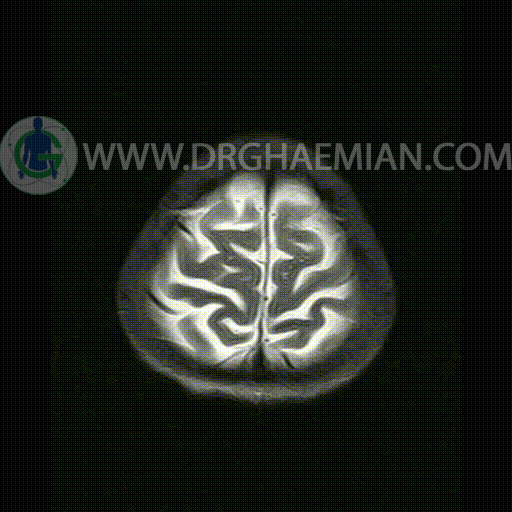

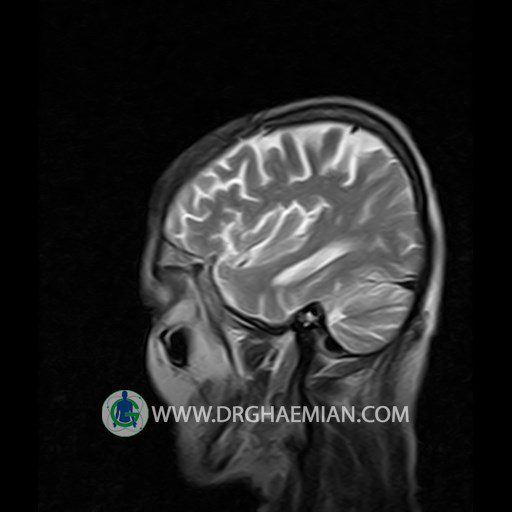

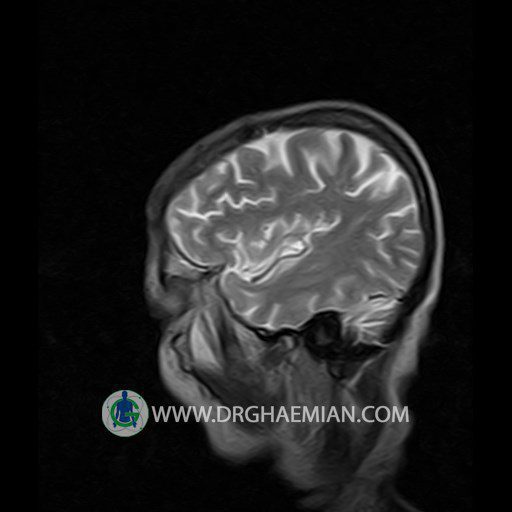

BRAIN MRI
(With & Without contrast)
Technique:Axial FLAIR , Axial , sagittal , FSE T2 , coronal T1 & post contrast Axial-sagittal – coronal T1 .
REPORT :
The interhemispheric fissure is centered on the midline .
The cerebral ventricles / cisterns are normal size and shape .
The cortex and white matter show normal signal intensity .
No abnormalities are seen in the basal ganglia , int . capsule, corpus callosum , Thalamus and tectal plate .
The brain stem , cerebellum show no abnormal changes in signal characteristics.
The sella and pituitary – pineal g .are normal and parasellar, suprasellar structures are unremarkable.
The cerebello pontine angle area appears normal on each side.
The internal acoustic meatus has normal width .
The orbital contents , falx , dura and calvaria are unremarkable .
Major intracranial vascular structures , pericavernous spaces and visualized intracranial nerve complex are normal .
The paranasal sinuses are clear and aerated with no evidence of bone erosion or destruction, fluid collection , cystic retention and mucosal thickening.
There is no evidence of abnormal enhancement within cranium .
– Extension of suprasella cistern to sella with thin pituitary gland in floor of sella ( partial empty sella )

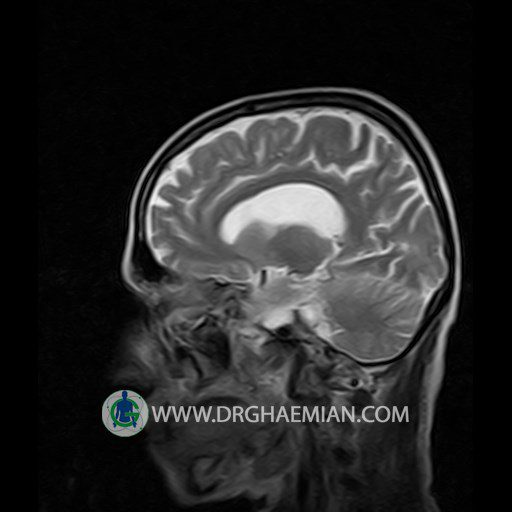

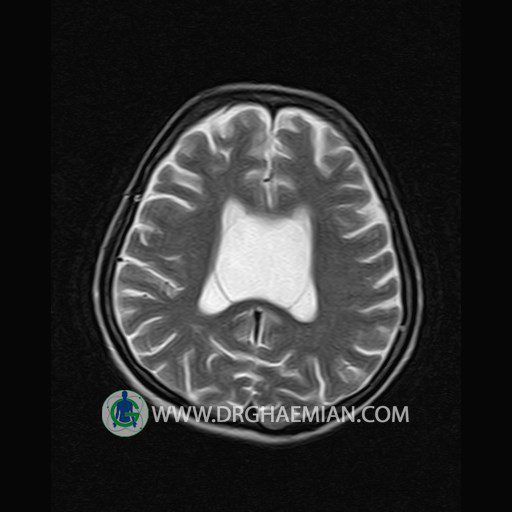

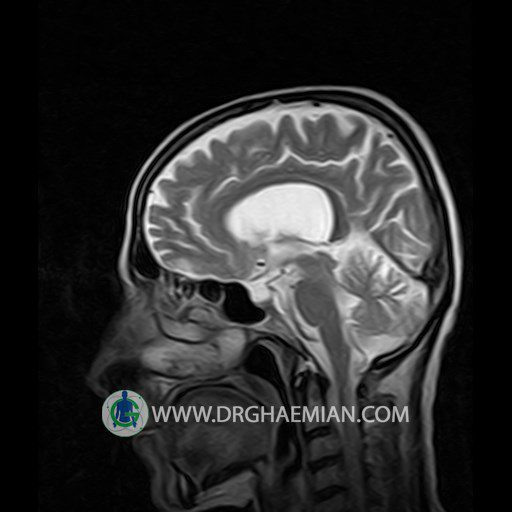

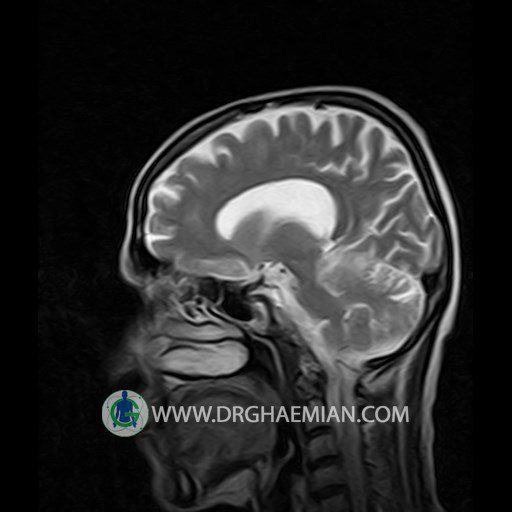

a well – defined cyst like lesion (40 x48 mm ) in midline , between lateral ventricle , inferior to corpus callosum with mass effect on body & trigon of lateral ventricle without solid part & without post contrast enhancement suggestive for cavum veli interpositi
are seen
